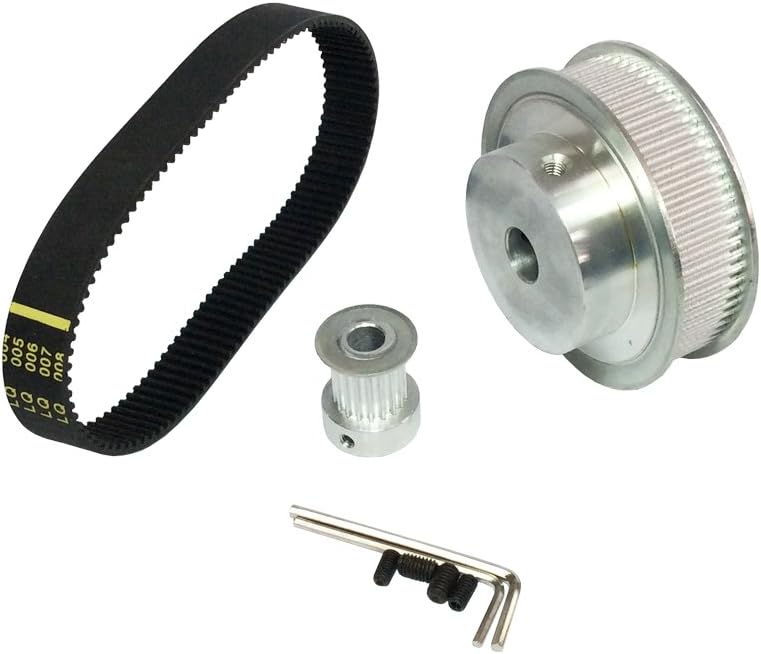

HTD 3M 60T 15T Belt Width 15mm Timing Pulley Belt Set kit Reduction Ratio 4:1

3M Timing Belt & Pulleys 3M60T15T-240 Specs: Type: 3M60T15T-240 Timing belt: Belt Pitch: 3mm Belt Height: 2.41mm Tooth Height: 1.17mm Material: Neoprene with Fiberglass Core Pitch Length: 240mm Width: 15mm Shape: closed loop Timing Belt Pulley: The Big Pulley Tooth Number: 60 Tooth Pitch: 3mm Hole Diameter: 8mm 12mm 12.7mm 14mm (You can select any size, Please leave message or contact us . If there is no message, Bore 14mm will be defaulted.) Flange: Double Tooth Width: 16mm Material: Aluminium Fit for Width of Timing: 15mm The Small PulleyTooth Number: 15 Tooth Pitch: 3mm Hole Diameter: 5mm 6mm 6.35mm 8mm(You can select any size, Please leave message or contact us . If there is no message, Bore 6.35mm will be defaulted.) Flange: Double Tooth Width: 16mm Material: Aluminium Fit for Width of Timing: 15mm The Package Listing Includes as Follow: 1pcs * 60 Teeth Timing Pulley 1pcs * 15 Teeth Timing Pulley 1pcs * 240mm Closed-loop Timing Belt 4pcs x setscrews 2pcs x Allen Key

• ✔Aluminum Big Pulley: 60 Teeth, bore 8mm 12mm 12.7mm 14mm(can be optional);
• ✔Aluminum Small Pulley: 15 Teeth, bore 5mm 6mm 6.35mm 8mm(can be optional);
• ✔You can select any bore, Pls leave message, If there is no message, big pulley bore 14mm and small pulley bore 6.35mm will be defaulted, thanks!
• ✔Belt Model: 3M-240-15; Two shaft center distance: 60mm; Reducer Ratio 4:1; Pitch: 3M;
• ✔Package: 1pcs * 60T Timing Pulley + 1pcs * 15T Timing Pulley + 1pcs 3M Timing Belt width 15mm Timing Belt + 2pcs * Allen Key + 4pcs * setscrews .
